NXS00186-A2L0SSS-A1A2000000 136G5287
- SKU:
- 136G5287
Description
7DS-001862-000005887
NXS00186-A2L0SSS-A1A2000000

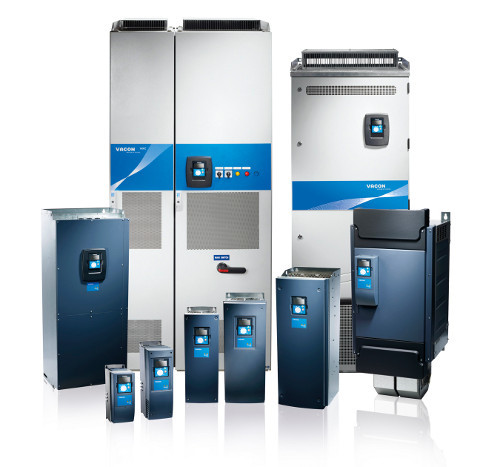

Vacon NXS Frequency Converter
525 –690 Vac (640-1100 Vdc), 18 Amp,IP21/NEMA1
Alpha-numeric display
IEC61800-3, 2. enviroment
No Brake
A Slot: A1,6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: A2,2RO(NO/NC)
C Slot: No board
D Slot: No board
E Slot: No board
Manual: English
Frame 06
Other options according to Model code
Product details
| Gross weight | 18.5 kg |
| Net weight | 18.5 kg |
| Volume | 0 l |
| EAN | 5710108617400 |
VACON NX_
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | NXS | NXS Frequency Converter |
| Customized Drive | +BM25 | Vacon Blue NXS/NXL Customizati |
| Mechanical Modification | S | Standard air cooled drive |
| Mains voltage | 6- | 525 –690 Vac (640-1100 Vdc) |
| Current | 0018 | 18 Amp |
| Control Keypad | A | Alpha-numeric display |
| Enclosure | 2 | IP21/NEMA1 |
| EMC emission levels | L | IEC61800-3, 2. enviroment |
| Brake Chopper | 0 | No Brake |
| Electrical Modification | S | 6-pulse with choke |
| Card Modifications | S- | Direct connection / standard |
| Shipping Package | +GSCB | Cardboard box as Shipping pack |
| Warranty | +WT01 | Warranty 12/18 months |
| Gland Plate Option | +QGLC | Inch conduit plate |
| Option Slot A | A1 | A1,6DI,DO,2AI,1AO,+10Vr,+24V |
| Option Slot B | A2 | A2,2RO(NO/NC) |
| Option Slot C | 00 | No board |
| Option Slot D | 00 | No board |
| Option Slot E | 00 | No board |
| Firmware language package | +FL22 | UK,FR,IT,ES,PT;WestEur |
| Documentation Level | +DQCK | Quick guide user manual |
| Documentation Lang. Preference | +DLUK | English |
| System Firmware | +FNS02 | System software NXS2 |
| Software license | NONE | no software license |
| Application | +A000 | No Special Application |
| Parameter Set | NONE | none |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ |
| Labeling options | +LPC1 | no additional labels |
| Special BoM structure | +SPC0 | Standard BoM Configuration |
| CE Approval | +GACE | CE Approval |
| UL Approval | +GAUL | UL approval |
| RCM Approval | +GACT | RCM Approval N16307 |
| Marine approval | NONE | no marine approval |
| KC Approval | +GAKC | Korean Approval |
| Ukrainian Approval | +GAUA | Ukrainian Approval |
| EAC Approval | +GAEA | EAC Approval |
| Region | -R00 | International (-R00) |
| Frame Size | FR06 | Frame 06 |
| Sub family identification | NONE | Normal customer ordered |
| Customer specific power variat | NONE | Normal power rating |
| Typecode Part 1 | 7DS-001862 | |
| Typecode Part 2 | -000005887 | |
| Salestext | FR0600186-2L | |
| Modelcode01 | NXS00186-A2L0SSS- | |
| Modelcode02 | A1A2000000 | |
| Calculated Net Weight [kg] | 18.5 | |
| Calculated Gross Weight [kg] | 19.5 | |
| Motor Power Low Overload [kW] | 15 | |
| Motor Power High Overload [kW] | 11 | |
| Dimensions WxHxD [mm] | 195X519X237 | |
| Continuous Current (NO) [A] | 18 | |
| Continuous Current (HO) [A] | 13.5 | |
| Prefix VXSNXLM | 7 | |
| Platform VXSNXLM | D | |
| Stockcode part 1 | 7DS-001862-1172C5 | |
| Stock Code | 7DS-001862 | |
| check if complete | OK | |
| Calculated Net Weight | 18.5 | |
| Material Gross Weight | 18.5 | |
| Material Net Weight | 18.5 | |
| Help Counter | 1 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
