NXS00165-A5T1SSV-A8A2000000+FL21+DPAP+EMAR 137L0039
- SKU:
- 137L0039
Description
7DS-001655-000117212
NXS00165-A5T1SSV-A8A2000000+FL21+DPAP+EMAR

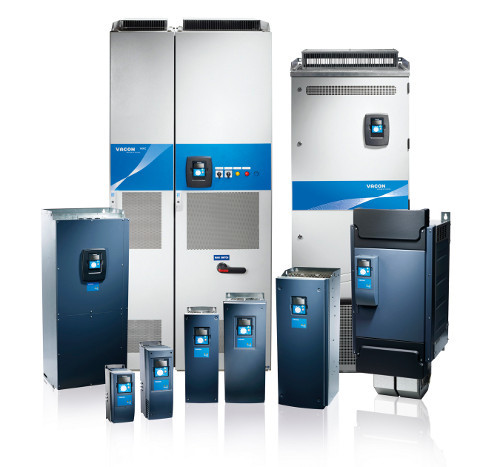

Vacon NXS Frequency Converter
380 –500 Vac (465-800 Vdc), 16 Amp,IP54/NEMA12
Alpha-numeric display
IEC61800-3 for IT networks
Integrated Brake chopper
A Slot: A8,OPTA1 w.galv.isol 2AI&1AO
B Slot: A2,2RO(NO/NC)
C Slot: No board
D Slot: No board
E Slot: No board
Manual: English
Frame 05
Other options according to Model code
Product details
| Gross weight | 9.1 kg |
| Net weight | 8.1 kg |
| Volume | 0 l |
| EAN | 5715253470412 |
VACON NX_
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | NXS | NXS Frequency Converter |
| Customized Drive | +BM25 | Vacon Blue NXS/NXL Customizati |
| Mechanical Modification | S | Standard air cooled drive |
| Mains voltage | 5- | 380 –500 Vac (465-800 Vdc) |
| Current | 0016 | 16 Amp |
| Control Keypad | A | Alpha-numeric display |
| Enclosure | 5 | IP54/NEMA12 |
| EMC emission levels | T | IEC61800-3 for IT networks |
| Brake Chopper | 1 | Integrated Brake chopper |
| Electrical Modification | S | 6-pulse with choke |
| Card Modifications | V- | DirectConn. w Varnished Boards |
| Shipping Package | +GSCB | Cardboard box as Shipping pack |
| Warranty | +WT01 | Warranty 12/18 months |
| Gland Plate Option | +QGLC | Inch conduit plate |
| Option Slot A | A8 | A8,OPTA1 w.galv.isol 2AI&1AO |
| Option Slot B | A2 | A2,2RO(NO/NC) |
| Option Slot C | 00 | No board |
| Option Slot D | 00 | No board |
| Option Slot E | 00 | No board |
| Firmware language package | +FL21 | UK,FI,SE,DK,DE;Nordic |
| Documentation Level | +DPAP | Paper manuals |
| Documentation Lang. Preference | +DLUK | English |
| System Firmware | +FNS02 | System software NXS2 |
| Software license | NONE | no software license |
| Application | +A000 | No Special Application |
| Parameter Set | NONE | none |
| Motor Parameter Default | +LS50 | Default Motor frequency 50HZ |
| Labeling options | +LPC1 | no additional labels |
| Special BoM structure | +SPC0 | Standard BoM Configuration |
| CE Approval | +GACE | CE Approval |
| UL Approval | +GAUL | UL approval |
| RCM Approval | +GACT | RCM Approval N16307 |
| Marine approval | +EMAR | Marine Approval |
| KC Approval | +GAKC | Korean Approval |
| Ukrainian Approval | +GAUA | Ukrainian Approval |
| EAC Approval | +GAEA | EAC Approval |
| Region | -R00 | International (-R00) |
| Frame Size | FR05 | Frame 05 |
| Sub family identification | NONE | Normal customer ordered |
| Customer specific power variat | NONE | Normal power rating |
| Typecode Part 1 | 7DS-001655 | |
| Typecode Part 2 | -000117212 | |
| Salestext | FR0500165-5T | |
| Modelcode01 | NXS00165-A5T1SSV- | |
| Modelcode02 | A8A2000000 | |
| Modelcode03 | +FL21 | |
| Modelcode05 | +DPAP+EMAR | |
| Calculated Net Weight [kg] | 8.1 | |
| Calculated Gross Weight [kg] | 9.1 | |
| Motor Power Low Overload [kW] | 7,5 | |
| Motor Power High Overload [kW] | 5,5 | |
| Continuous Current (NO) [A] | 16 | |
| Continuous Current (HO) [A] | 12 | |
| Prefix VXSNXLM | 7 | |
| Platform VXSNXLM | D | |
| Stock Code | 7DS-001655 | |
| check if complete | OK | |
| customized ID | +BM25 | |
| Help Counter | 1 | |
| Plant from Orderline | D801 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
